Home > 12V10A/12V15A/12V20A open frame lead acid battery charger

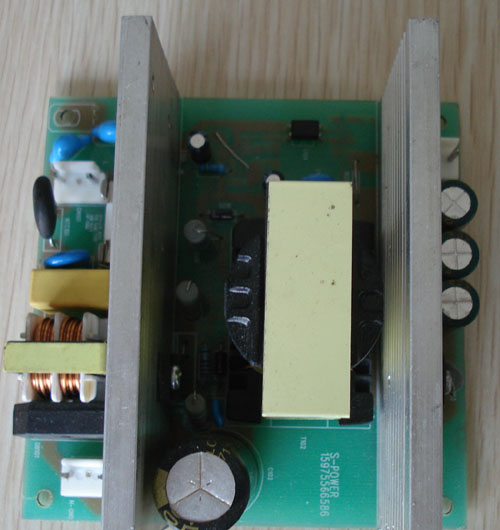

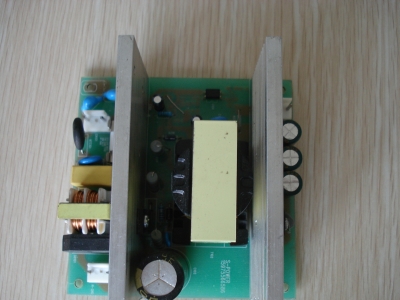

12V10A/12V15A/12V20A open frame lead acid battery charger
Product Details:
Place of Origin:
Certification:
CE
Model Number:
MP-OPBC-12
Payment & Shipping Terms:
Minimum Order Quantity:
1000
Price:
negoticate
Packaging Details:
PE bag
Delivery Time:
15days
Payment Terms:
TT
Supply Ability:
100000pcs/month
Product Description

12V 10A LEAD ACID BATTERY CHARGER SPECIFICATION

1.Products
   Product application for 12V lead-acid power battery, solar battery, electric cars and other battery charge
2.Applications
    Products for the 12V lead-acid batteries, battery capacity is 50-100AH efficiently constant pressure constant flow can charging management since
3.Performance characteristics
   a. Adopt constant pressure automatically charges
   b. Full of electricity automatically turn off the charger
4.The main parameters
Model 150VA
INPUT Voltage(V)  180-264VAC or 100AC-132VAC   (200VDC-380VDC)
Frequency:(HZ)  50Hz   60Hz  +/-2Hz
ON LOAD POWER(W) 5W
OUTPUT Voltage(V) 13.8V+/-0.3V (NO load)
Charger Current(A) 10A±2A (at voltage10.5V)
Max Power Efficiency 80%
Surge current   70A
Protection circuit:  reverse polarity protection, low battery voltage protection,Over current protection
Max continuous power 150W
EMC CE
Noise <55dB
Relative Humidity 0~90%
Ambient temperature ,-10℃--+40℃
Altitude Below 1,000 meters
size 100*100*50MM
weight

0.8KG
PCB fixed size  90*90MM
