Home > 18 channel power supply for CCTV camera
18 channel power supply for CCTV camera
Product Details:
Place of Origin:
Certification:
CE
Model Number:
Payment & Shipping Terms:
Minimum Order Quantity:
500pcs
Price:
negoticate
Packaging Details:
box
Delivery Time:
15days
Payment Terms:
TT
Supply Ability:
100000pcs/month
Product Description

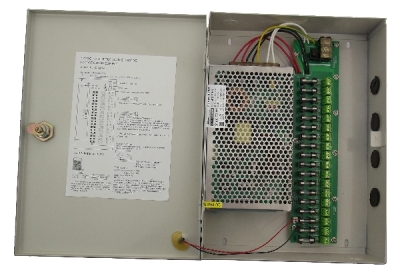

18 channel power supply distribution box, CCTV power supply
Industrial power supply, security monitoring power, instrumentation, LED centralized power supply etc.
• Universal full range AC input
• Protections: Short circuit / overload / over voltage /
• Natural air
• 100% full load burn-in test
• 2-year warranty
Output Model AD-S1210018CH AD-S1210018CH AD-S1210018CH AD-S1210018CH AD-S1210018CH AD-S1210018CH
DC voltage 12V
Rated current 10A 12A 15A 20A 25A 30A
Current range 0 ~ 10A 0 ~ 12A 0 ~ 15A 0 ~ 20A 0 ~ 25A 0 ~ 30A
Rated power 120W 150W 180W 240W 300W 360W
Ripple&Noise 80mVp-p 120mVp-p 120mVp-p 120mVp-p 120mVp-p 120mVp-p
Voltage regulation 4.75 ~ 5.5V 7.13 ~ 8.3V 8.55 ~ 9.9V 11.4 ~ 13.2V 14.25 ~ 16.5V 22.8 ~ 26.4V
Voltage accuracy ±2.0% ±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
Linear regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Sart,rise,hold time 500ms,20ms/230VAC         500ms,20ms/115VAC        30ms/230VAC,25ms/115VAC(full load)
Input Voltage range 85 ~ 132VAC/176 ~ 264VDC(switch) or 248 ~ 373VDC
Frequency range 47-63Hz
Efficiency rate 80% 81% 81% 83% 84% 86%
Input current 2A/115VAC        1.2A/230VAC
Surge current Cold boot:36A
Leakage current <2mA/240VAC
Protection Over load 110% ~ 150% of rated output power rate
Protected mode: hiccup mode, the load of an abnormal condition can be automatically restored after removed
Over voltage 5.75 ~ 6.75V 8.6 ~ 10.1V 10.4 ~ 12.2V 13.8 ~ 16..2V 17.25 ~ 20.25V 27.6 ~ 32.4V
Protected model: close output, output power can be restored to normal after restart
Environment Working temperature -20 ~ +60℃
Operate Humidity 20 ~ 90%RH,no condensation
Storage temperature, humidity -40 ~ +85℃,10 ~ 95%RH
Temperature coefficient ±0.03%/℃(0 ~ 45℃)
Vibration resistance 10 ~ 500Hz,2G10 mintue/ cycle,X,Y,Z axis/60 mintues
Safety &electromagnetic compatibility Safety standard UL60950-1,CB(IEC60950-1),CCC GB4943.1:2011 passed
Withstand voltage I/P ~ O/P:3KVDC       I/P ~ FG:2KVDC       0/P ~ FG:0.5KVDC
Insulation resistance I/P ~ O/P , I/P ~ FG , 0/P ~ FG:100M Ohms/500VDC/25℃/70%RH
Electromagnetic compatibility &emission Comply to EN55022(CISPR22) ClassB,EN61000-3-2,3
Electromagnetic compatibility &noise immunity Comply to EN61000-4-2,3,4,5,6,11,EN55024,EN61000-6-1,A light industry level
Other MTBF ≥320.7Khrs MIL-HDBK-217F(25℃)
packing
Remark 1.  If not otherwise stated, all specification parameters are input to 230VAC, rated load, for measurements under 25 ℃ 70% RH ambient temperature.
2.  DC voltage measurements: at 50% load condition, the plug terminal end measurements.
3.  Ripple and noise measurement methods: using a 12 "twisted pair terminated with a 0.1uf & 47uf parallel capacitor for measurements at 20MHZ bandwidth.
4.  Accuracy: includes set up tolerance, line regulation and load regulation.
5.  linear adjustment rate measurement methods: at rated load from low voltage to high voltage testing.
6.  load regulation measurement methods: from the rated load from 0% to 100%.
7.  in accordance with the requirements GB4943.1 power applies only to an altitude of 2000 meters the following areas and the safe use of non-tropical climates.
8.  power supply should be considered as part of the system components, the need to combine the terminal equipment related to electromagnetic compatibility confirmed
