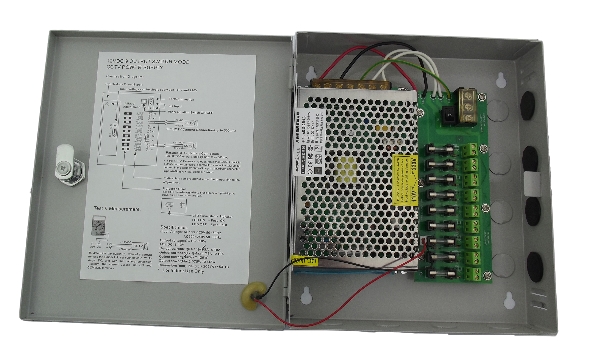

9 channel power supply distribution box, CCTV power supply
Industrial power supply, security monitoring power, instrumentation, LED centralized power supply etc. |
• Universal full range AC input
• Protections: Short circuit / overload / over voltage /
• Natural air
• 100% full load burn-in test
• 2-year warranty |
|
output |
Model |
AD-S12509CH |
AD-S12809CH |
AD-S121009CH |
|
DC voltage |
12V |
|
Rated current |
5A |
8A |
10A |
|
Current range |
0 ~ 5A |
0 ~ 8A |
0 ~ 10A |
|
Rated power |
60W |
100W |
120W |
|
Ripple &Noise |
80mVp-p |
120mVp-p |
120mVp-p |
|
Voltage range |
4.75 ~ 5.5V |
7.13 ~ 8.3V |
8.55 ~ 9.9V |
|
Voltage Accuracy |
±2.0% |
±1.0% |
±1.0% |
|
Linear adjustment rate |
±0.5% |
±0.5% |
±0.5% |
|
Load regulation 备注6 |
±0.5% |
±0.5% |
±0.5% |
|
Start,rise,hold time |
500ms,20ms/230VAC 500ms,20ms/115VAC 30ms/230VAC,25ms/115VAC(full load) |
|
Input |
Input voltage range |
85 ~ 132VAC/176 ~ 264VDC(switch ) or248 ~ 373VDC |
|
Frequency range |
47-63Hz |
|
Efficiency rate |
80% |
81% |
81% |
|
Input current |
2A/115VAC 1.2A/230VAC |
|
Surge current at max |
Cold boot:36A |
|
Leakage current at max |
<2mA/240VAC |
|
Protection |
Short circuit |
|
|
Over load |
110% ~ 150% of rated output power |
|
Protected mode:hicuup mode, The load of an abnormal condition can be automatically restored after removed |
|
Over voltage |
5.75 ~ 6.75V |
8.6 ~ 10.1V |
10.4 ~ 12.2V |
|
Protected mode: close outpout, outpout power can be restored to normal after restart. |
|
environment |
Working temperature |
-20 ~ +60℃ |
|
Operating humidity |
20 ~ 90%RH,no condesation |
|
Storage temperature,humidity |
-40 ~ +85℃,10 ~ 95%RH |
|
Temperature coefficient |
±0.03%/℃(0 ~ 45℃) |
|
Vibration resistance |
10 ~ 500Hz,2G10 minute/cycle,X、Y、Z axis/60minutes |
|
Safety standard and electromagnetism compatibility |
Standard for safety |
UL60950-1,CB(IEC60950-1),CCC GB4943.1:2011 passed |
|
Withstand voltage |
I/P ~ O/P:3KVDC I/P ~ FG:2KVDC 0/P ~ FG:0.5KVDC |
|
Insulation resistance |
I/P ~ O/P , I/P ~ FG , 0/P ~ FG:100M Ohms/500VDC/25℃/70%RH |
|
Electromagnetic compatibility &emission |
Comply to EN55022(CISPR22) ClassB,EN61000-3-2,3 |
|
Electromagnetic compatibility noise immuntiy |
Comply to EN61000-4-2,3,4,5,6,11,EN55024,EN61000-6-1,A ,light industry level |
|
Other |
MTBF |
≥320.7Khrs MIL-HDBK-217F(25℃) |
|
packing |
|
|
Remark |
1. 1 If not otherwise stated, all specification parameters are input to 230VAC, rated load, for measurements under 25 ℃ 70% RH ambient temperature.
2. 2 DC voltage measurements: at 50% load condition, the plug terminal end measurements.
3. 3 Ripple and noise measurement methods: using a 12 "twisted pair terminated with a 0.1uf & 47uf parallel capacitor for measurements at 20MHZ bandwidth.
4. 4 Accuracy: includes set up tolerance, line regulation and load regulation.
5. 5 linear adjustment rate measurement methods: at rated load from low voltage to high voltage testing.
6. 6 load regulation measurement methods: from the rated load from 0% to 100%.
7. 7 in accordance with the requirements GB4943.1 power applies only to an altitude of 2000 meters the following areas and the safe use of non-tropical climates.
8. Power should be considered as part of the system components, the need to combine the terminal equipment related to electromagnetic compatibility confirmed |
