Hot selling model:
4.2V500mA battery charger
4.2V800mA battery charger
4.2V1A battery charger
8.4V1A battery charger
12.6V800mA battery charger
12.6V1A battery charger

simple description ：
battery charger, charger, lithium battery charger, Li-ion battery charger

Input AC plug type	Input range	Output voltage&current	Output connector type
USA, European, UK, Australia other country                   (customized by your requirement	100Vac~240Vac	4.2V500mA	5.5*2.1*10mm, 5.5*2.5*10mm, 3.5*1.35*10mm, Or others  (customized by your requirement)
	100Vac~240Vac	4.2V800mA
	100Vac~240Vac	4.2V1A
	100Vac~240Vac	8.4V1A
	100Vac~240Vac	12.6V800mA
	100Vac~240Vac	12.6V1A
	100Vac~240Vac	16.8V1A
	100Vac~240Vac	21V1A


APPLICATION

Lithium battery product, Li-ion battery product such as  mobile phone, cell phone, MP3/M4,table PC,HUB, DPF, GPS,H DMI, Multi-media, tel-communication, toys, security and protection, portable DVD,PC,PDA etc .IT and household products, electric device,
FEATURES
Led indication option
built-in EMI filter
100% load test
Full range of input voltage
output voltage accurate and stable
Output over-voltage, over-current and short-circuit protection
Output low ripple and noise
Two year warranty Average working no trouble ＞50,000 hours

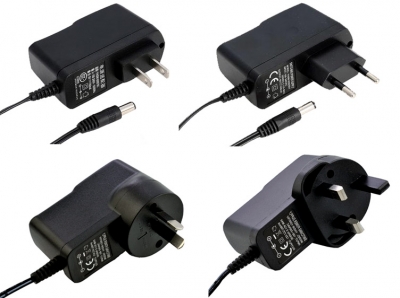

Wall-mount switching power supply
Small low profile package
Overload, short circuit protection
Operation model: constant voltage.
RoHS compliance
private mold,special apperance
high quality,competitive price
prompt delivery
safety approval


SPECIFICATIONS
at 25°C ambient temperature
Input Specifications
Input voltages: 100…240 VAC
Input frequency: 47…63 Hz
Input current: 0.2A Max.
Hold-up time, nom.conditions: 20ms@VAC
Inrush current:  <30A/240V
Output Specifications
Regulation: line <2%, load <5%
Recovery time: ±2% max. 1 ms
Ripple and noise: <1% max.
General Specifications
Operating temperature: 0°C…+40°C
Storage temperature: -20°C…+85°C
Dielectric Withstand (Hipot): 3000VAC 1min inp.<->outp.
Insulation resistance: pri. to sec. >50MOhm 500 VDC
Overcurrent protection: 120 %, auto restart
Overvoltage protection: 120 %, auto restart
