Home > Li-ion battery charger

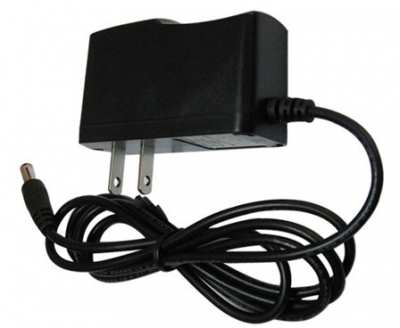

Li-ion battery charger
Product Details:
Place of Origin:
Certification:
CE,FCC
Model Number:
MPL_battery charger
Payment & Shipping Terms:
Minimum Order Quantity:
3000pcs
Price:
negotiable
Packaging Details:
PE bag or wite box
Delivery Time:
20days upon your PO and payment
Payment Terms:
TT
Supply Ability:
1000000pcs/month
Product Description
Hot selling model:
4.2V500mA battery charger
4.2V800mA battery charger
4.2V1A battery charger
8.4V1A battery charger
12.6V800mA battery charger
12.6V1A battery charger

simple description
battery charger, charger, lithium battery charger, Li-ion battery charger
Input AC plug type Input range Output voltage&current Output connector type
USA,
European,
UK,
Australia
other country                   (customized by your requirement
100Vac~240Vac 4.2V500mA 5.5*2.1*10mm,
5.5*2.5*10mm,
3.5*1.35*10mm,
Or others
 (customized by your requirement)
100Vac~240Vac 4.2V800mA
100Vac~240Vac 4.2V1A
100Vac~240Vac 8.4V1A
100Vac~240Vac 12.6V800mA
100Vac~240Vac 12.6V1A
100Vac~240Vac 16.8V1A
100Vac~240Vac 21V1A

APPLICATION

Lithium battery product, Li-ion battery product such as  mobile phone, cell phone, MP3/M4,table PC,HUB, DPF, GPS,H DMI, Multi-media, tel-communication, toys, security and protection, portable DVD,PC,PDA etc .IT and household products, electric device,
FEATURES
Led indication option
built-in EMI filter
100% load test
Full range of input voltage
output voltage accurate and stable
Output over-voltage, over-current and short-circuit protection
Output low ripple and noise
Two year warranty Average working no trouble >50,000 hours
Wall-mount switching power supply
Small low profile package
Overload, short circuit protection
Operation model: constant voltage.
RoHS compliance
private mold,special apperance
high quality,competitive price
prompt delivery
safety approval


SPECIFICATIONS
at 25°C ambient temperature
Input Specifications
Input voltages: 100…240 VAC
Input frequency: 47…63 Hz
Input current: 0.2A Max.
Hold-up time, nom.conditions: 20ms@VAC
Inrush current:  <30A/240V
Output Specifications
Regulation: line <2%, load <5%
Recovery time: ±2% max. 1 ms
Ripple and noise: <1% max.
General Specifications
Operating temperature: 0°C…+40°C
Storage temperature: -20°C…+85°C
Dielectric Withstand (Hipot): 3000VAC 1min inp.<->outp.
Insulation resistance: pri. to sec. >50MOhm 500 VDC
Overcurrent protection: 120 %, auto restart
Overvoltage protection: 120 %, auto restart
